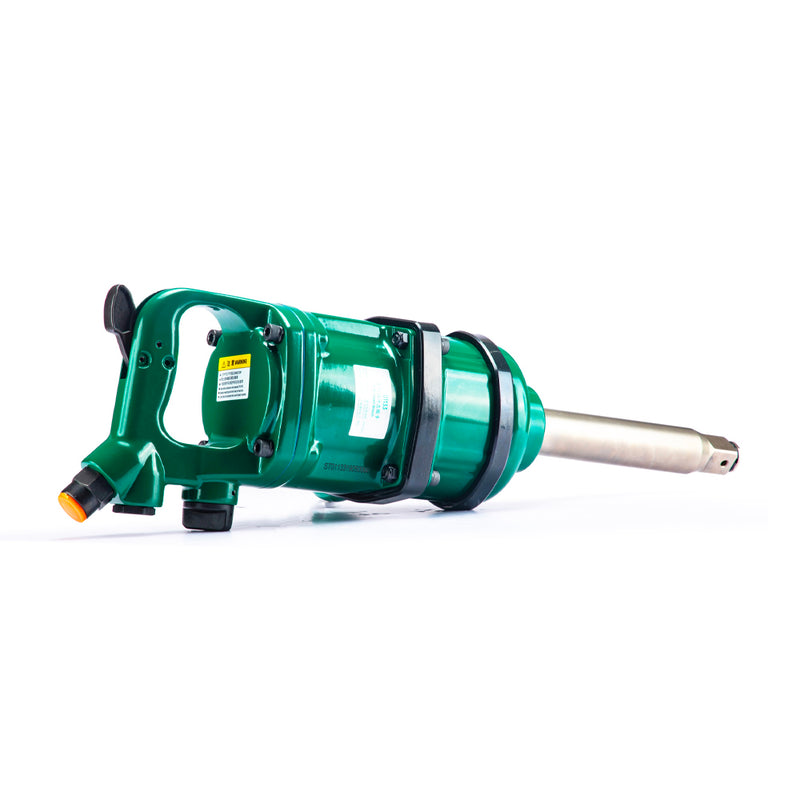

Máy vặn bu lông cầm tay dạng súng loại nặng, hoạt động bằng cơ chế nén khí, kích thước đầu vuông: 1 inch, lực xoắn 4000Nm, dùng trong garage sửa xe ô tô, SATA - 01133
1” Heavy Duty Air Impact Wrench
Introduction
● Maximum output torque of 4000 N· m, and tightening torque of S55
● Suitable for the removal and installation of tires of heavy trucks and large passenger vehicles as well as the removal, installation and repair of heavy-duty vehicle chassis and large mechanical equipment.
● Main parts made through the vacuum thermal treatment and ultra-low temperature quenching, featuring high hardness, toughness and wear resistance and long service life.
● Light weight, effectively reducing the labor intensity
Product No 01133
Idle speed（RPM） 4000
Tightening bolt capacity M36
Output shaft length 9"
Average air consumption（CFM） 16
Noise level dB（A） 110
Length（mm） 623
Width（mm） 140
Height（mm） 176
Net Weight（kg） 16.8
Air Inlet Size 1/2"
Minimum endotracheal diameter（mm） 12.5
Working air pressure（KGF/CM2） 8
Warranty Terms Three months warranty, pneumatic tools warranty terms, please see 'Introduction'
Special note Noise level is A sound pressure level. Working pressure refers to the dynamic pressure measured at the product inlet when the product is idling. Tightening bolt capacity refers to standard torque that meets the specifications of DIN267 grade 8.8 bolts

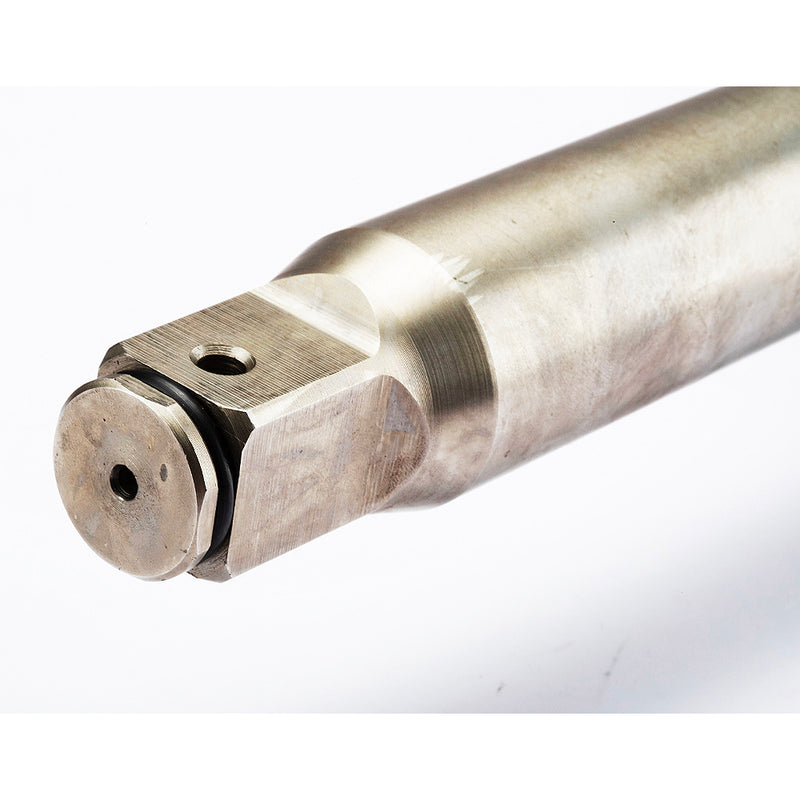

Output specification 1"square-head
Operating torque（N·M） 3000
Maximum reverse torque（N·M） 4000
