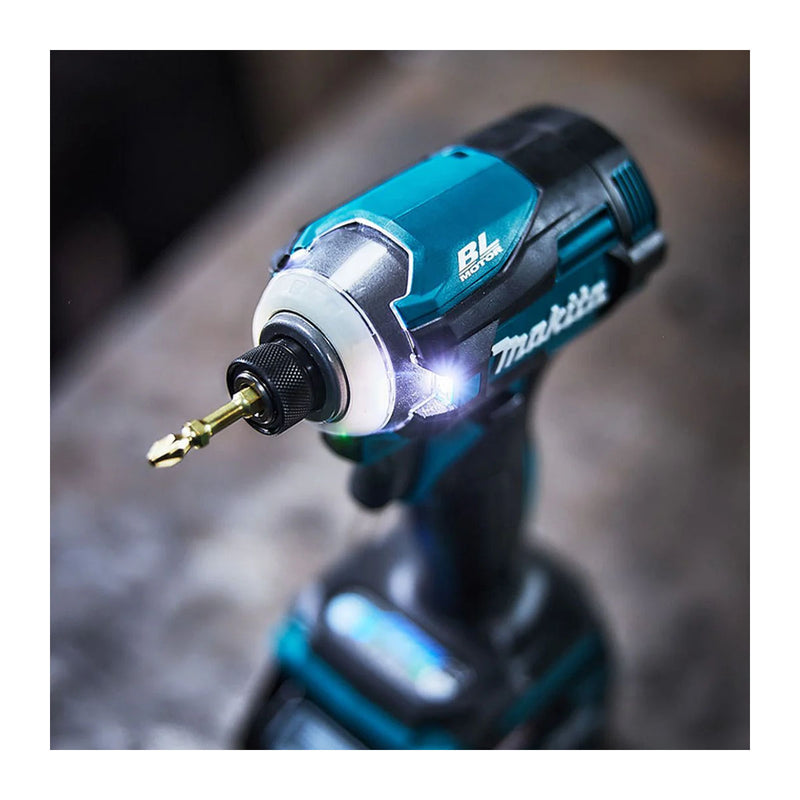

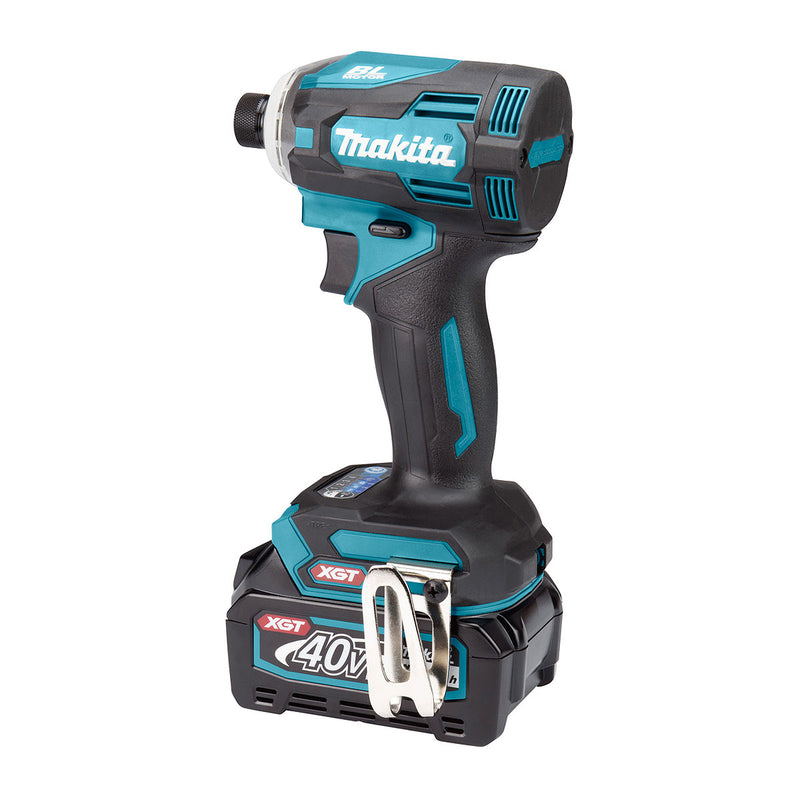

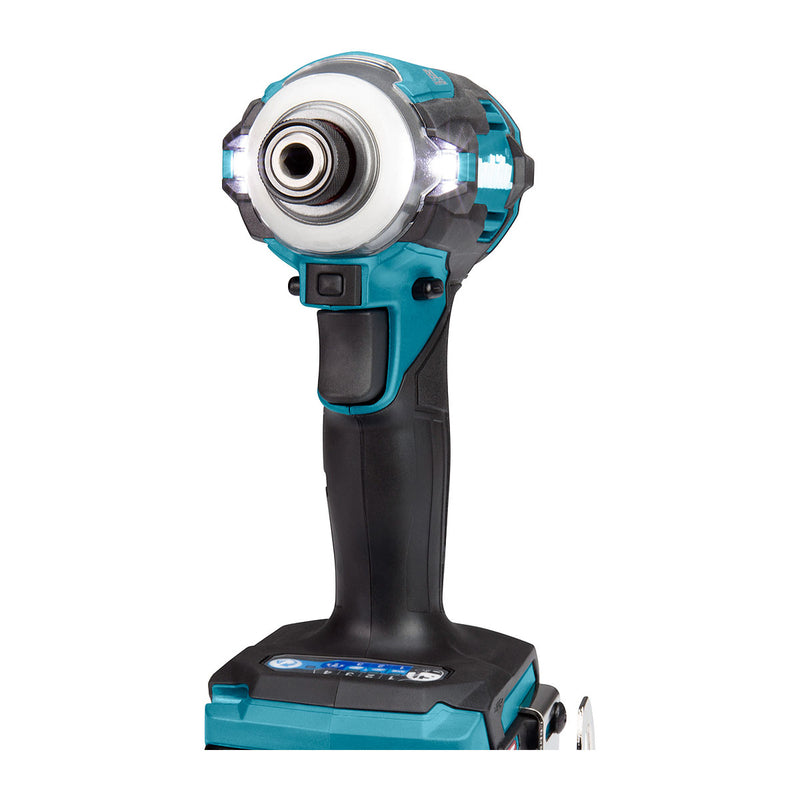

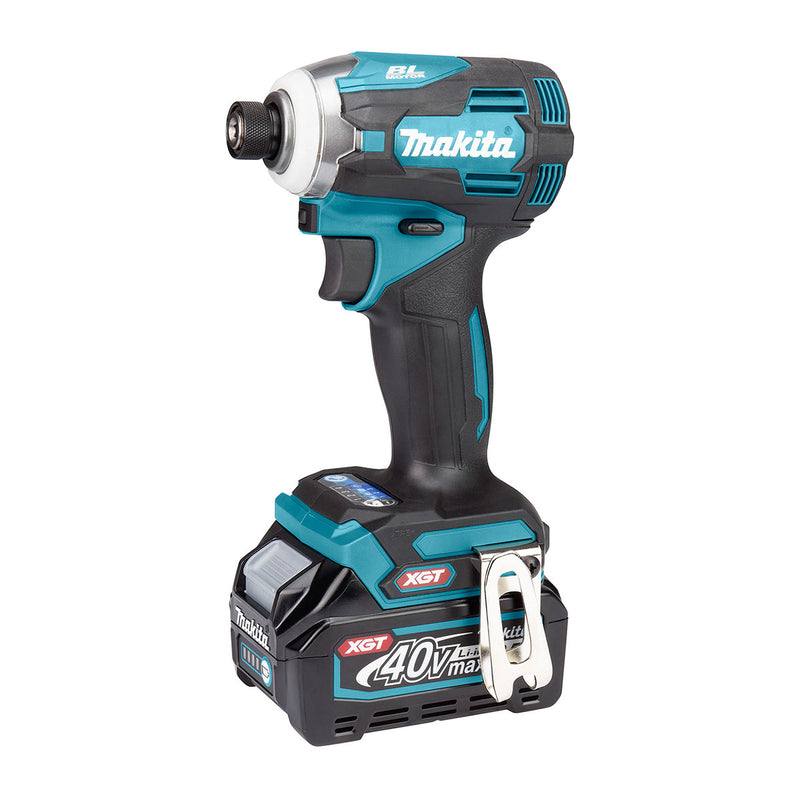

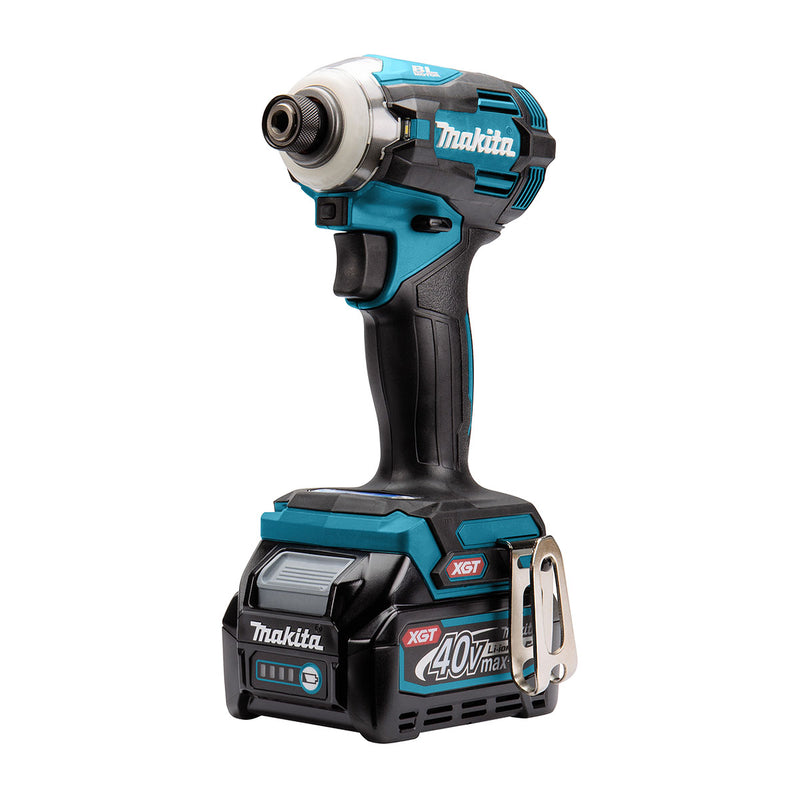

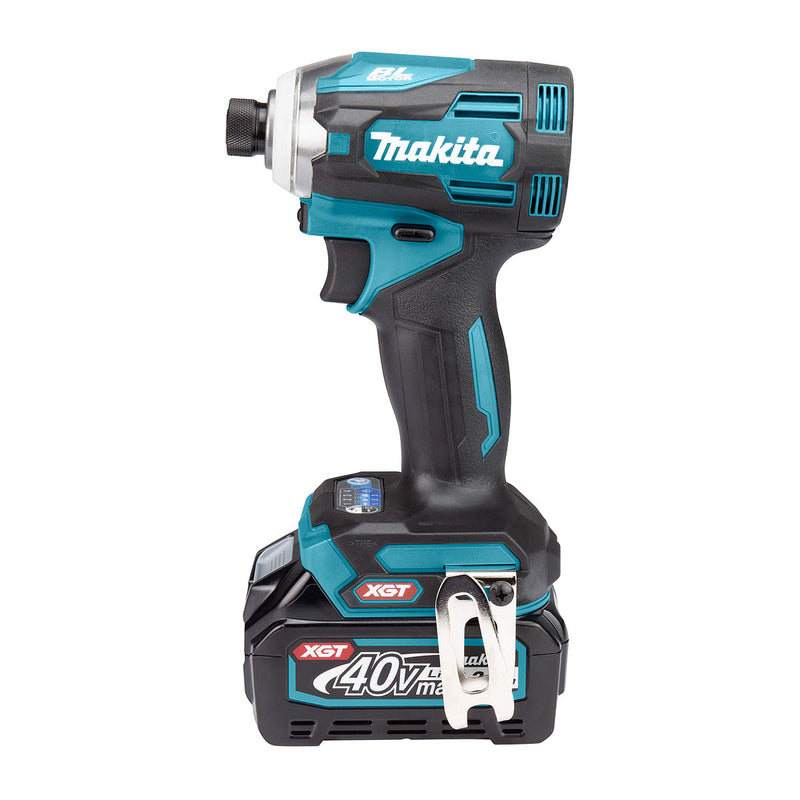

CORDLESS IMPACT DRIVER(BL)(40V MAX) Makita TD001GZ
_____________________________
Product Variants:

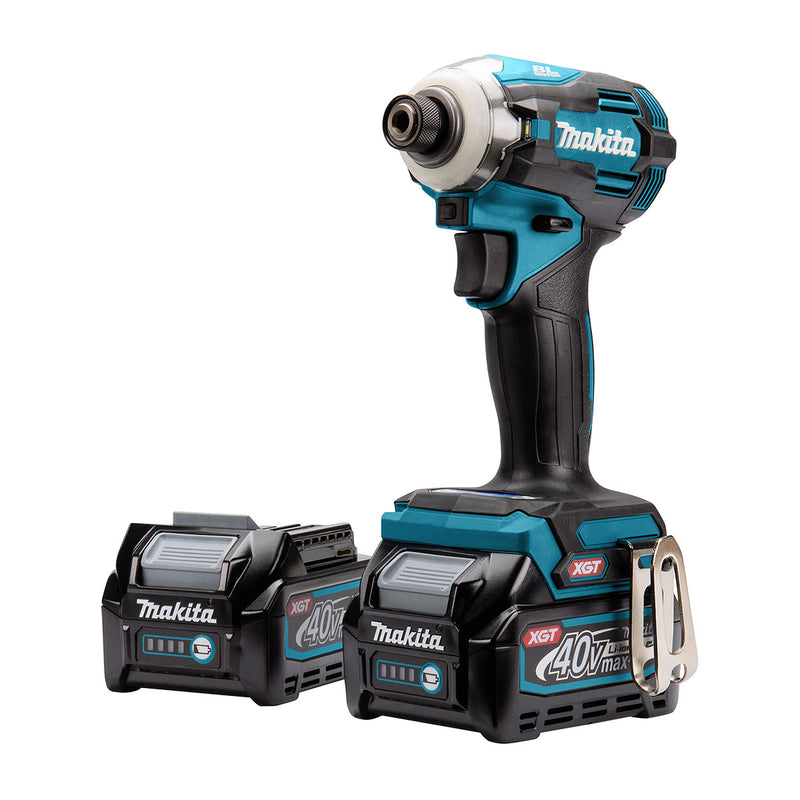

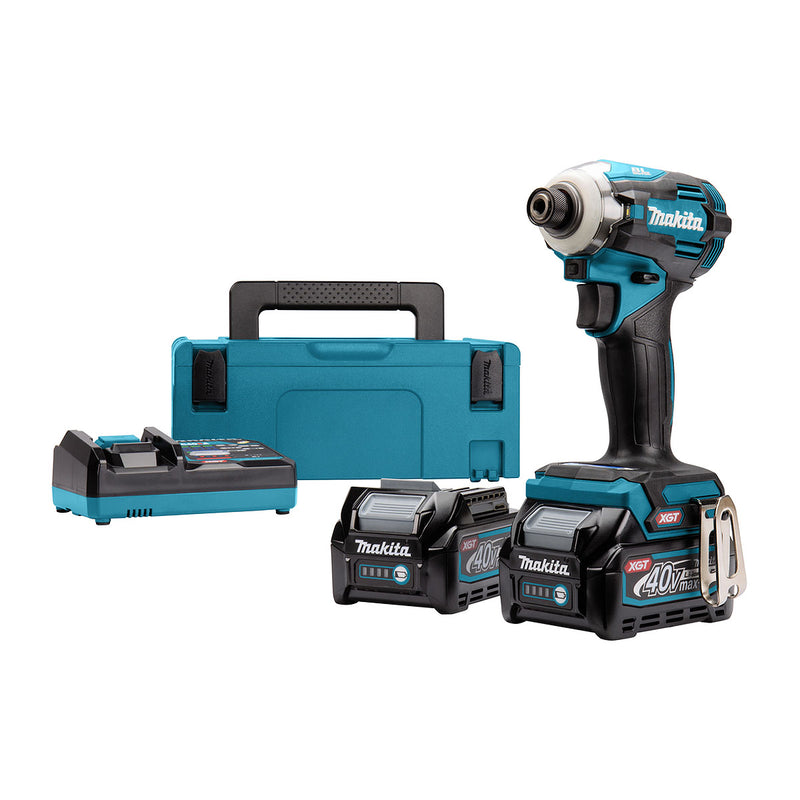

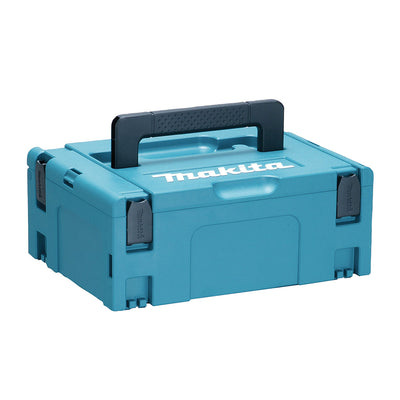

TD001GM201: Machine body + Fast charger (DC40RA) + 2 x 4.0Ah batteries (BL4040) + Makpac case No. 2 (821550-0)

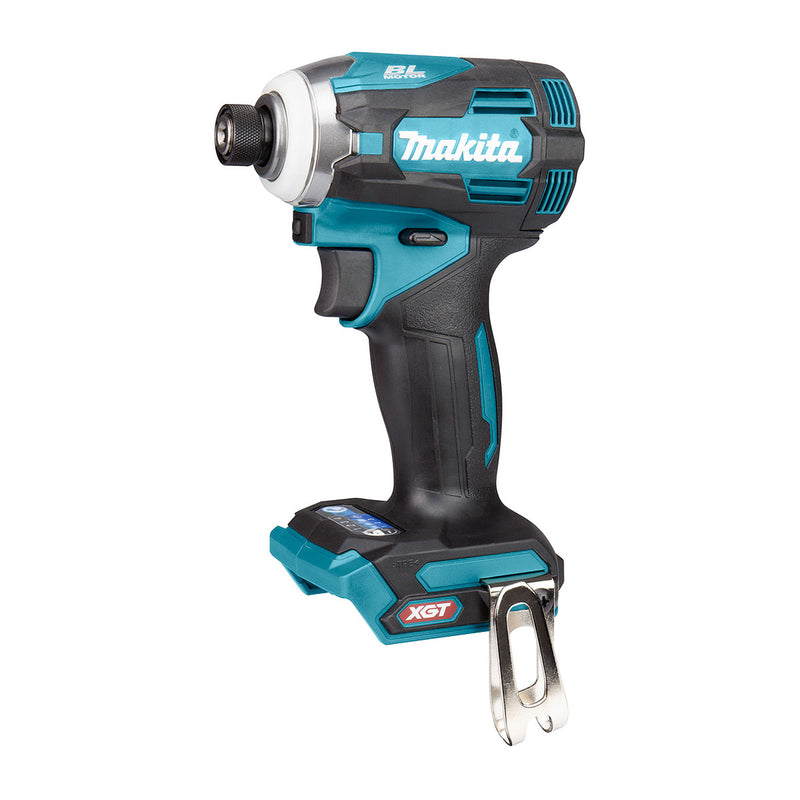

TD001GZ: Machine body only, no batteries or charger included
_____________________________
Features
Model TD001G is a cordless impact driver powered by 40Vmax XGT Li-Ion battery, and developed based on DTD171.
The main features and benefits are:

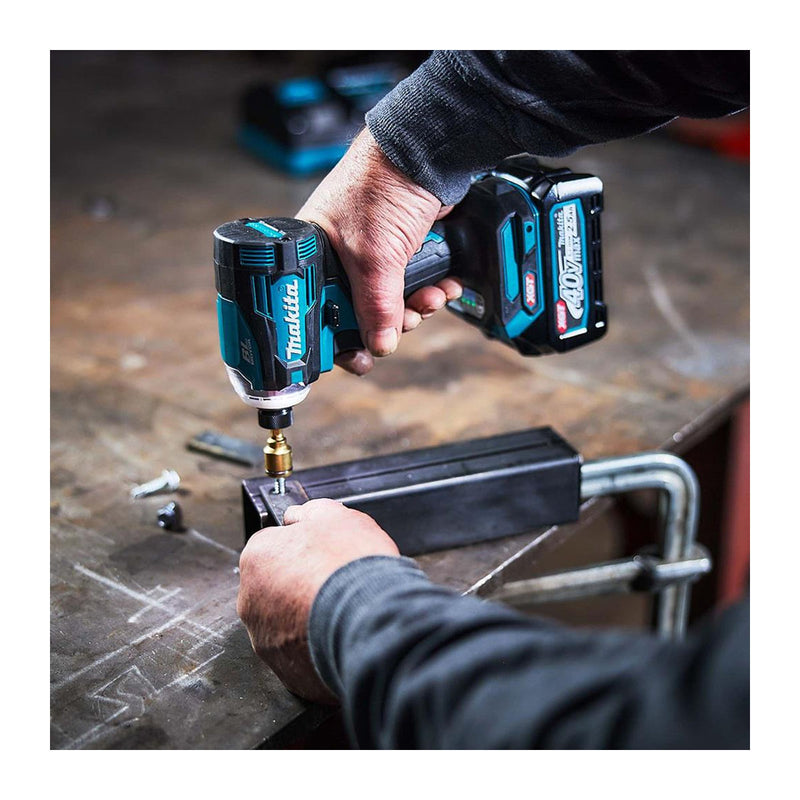

Able to continuously tighten heavy duty screws such as metal fastening screws or lag screws.

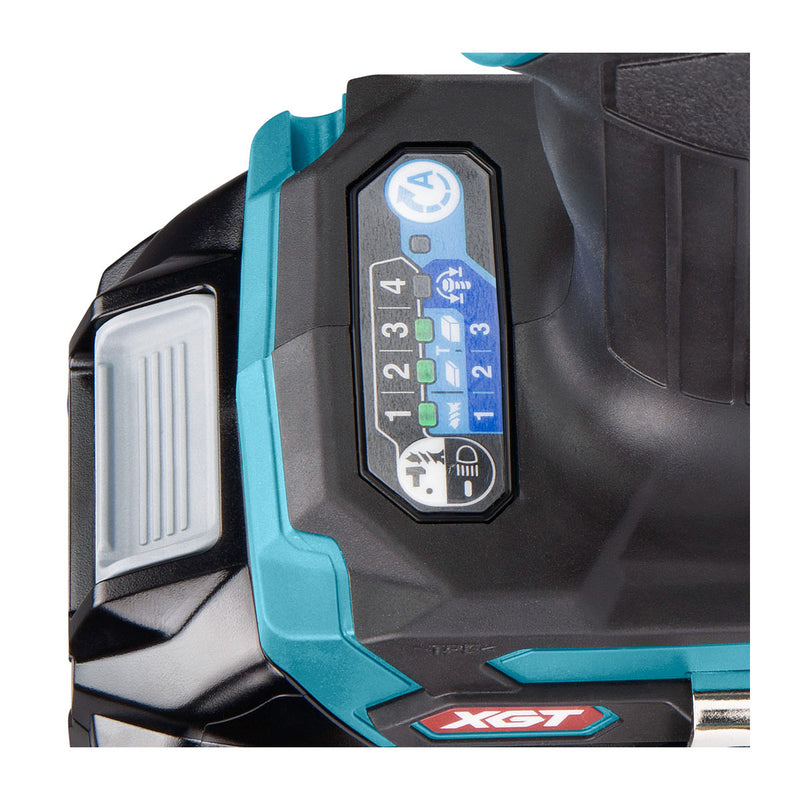

Improved Bolt modes for more convenience in tightening machine screws
( No battery, charger )
_____________________________
Product Specifications:
Capacity ; Machine Screw: M4 - M8 (5/32 - 5/1 6 inch) , Standard Bolt: M5 - M16 (3/16 - 5/ 8 inch) , High Strength Bolt: M5 - M14 (3/16 - 9/16 inch) , Coarse thread (in length): 22 - 125 mm (7/8 - 4-7/8 inch) , Steel: 22 mm (7/8 inch) , Wood (Auger Bit): 24 mm (15/16 inch)
Dimensions (L X W X H) w/ BL4020 / BL4025: 120 x 86 x 245 mm (4-3/4 x 3-3/8 x 9-5/8 inch) , w/ BL4040: 120 x 86 x 250 mm (4-3/ 4 x 3-3/8 x 9-7/8 inch)
Hex Shank 6.35 mm (1/4 inch)
Hole Diameter 38 mm (1-1/2")
Impacts Per Minute (Ipm) ; Max / Hard / Mid / Soft / Wood / Bolt (1) / Bolt (2) / Bolt (3) / T (1) / T (2) m ode: 0 - 4,400 / 3,600 / 2,600 / 1,100 / 4,400 / N/A / 4,400 / 4,400 / N/A / 2, 600
Max Fastening Torque 220 N·m (1,950 in.lbs.)
Max Output 600 W
Net Weight : 1.7 - 2.0 kg (3.7 - 4.4 lbs. )
No Load Speed (Rpm : Max / Hard / Mid / Soft / Wood / Bolt (1) / Bolt (2) / Bolt (3) / T (1) / T (2) m ode: 0 - 3,700 / 3,200 / 2,100 / 1,100 / 1,800 / 2,500 / 3,700 / 3,700 / 2,400 / 3,700
Sound Power Level 107 dB(A)
Sound Pressure Level 98 dB(A)
Oscillation angle : field_60d9572b1dfd9
_____________________________
Standard Accessories

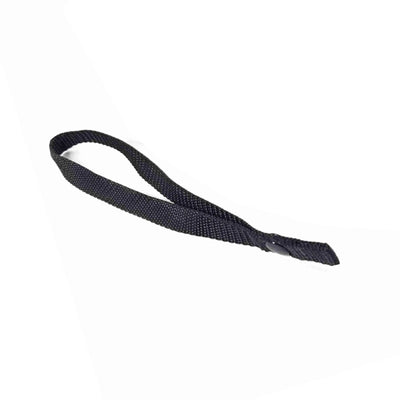

Screw PH2-120(B-66743) , hook(346317-0), lanyard(163400-6), Screw (+) M4X12 (266622-8)
