CORDLESS IMPACT DRIVER(BL)(18V) Makita DTD173
___________________________
Product Variants:

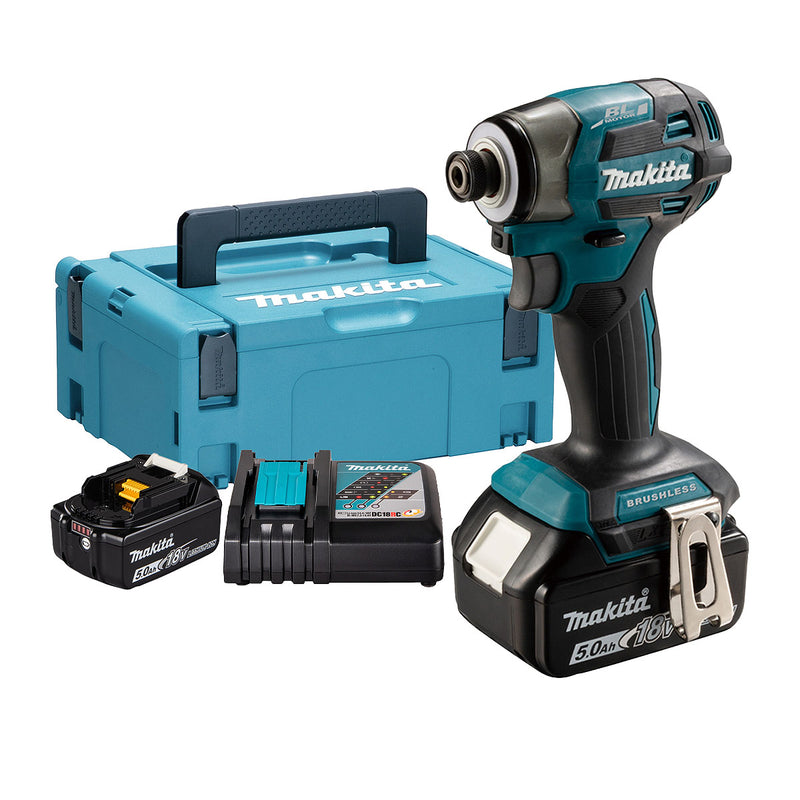

DTD173RTJ: Body + 2 x 5.0Ah Batteries (BL1850B) + Fast Charger (DC18RC)

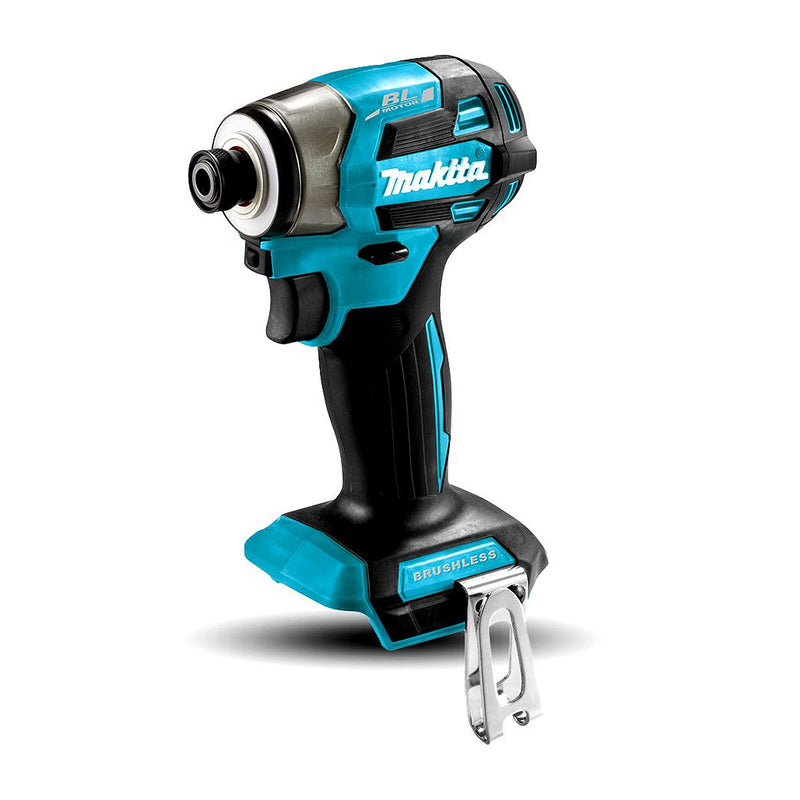

DTD173Z: Body only. Batteries and charger not included
___________________________
Features

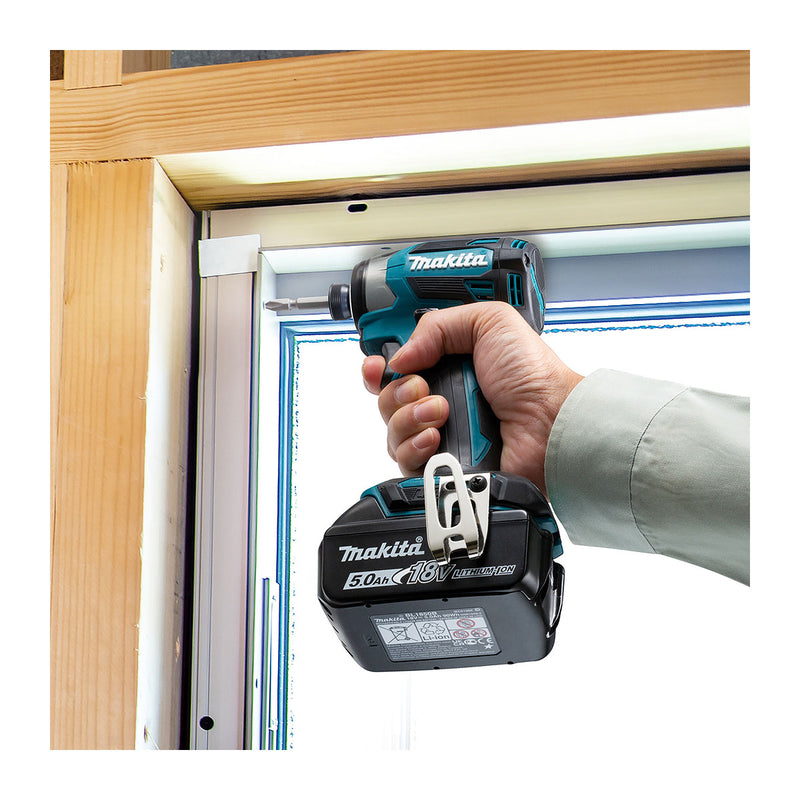

Model DTD173 is a Cordless Impact Driver powered by an 18V LXT Li-Ion battery.

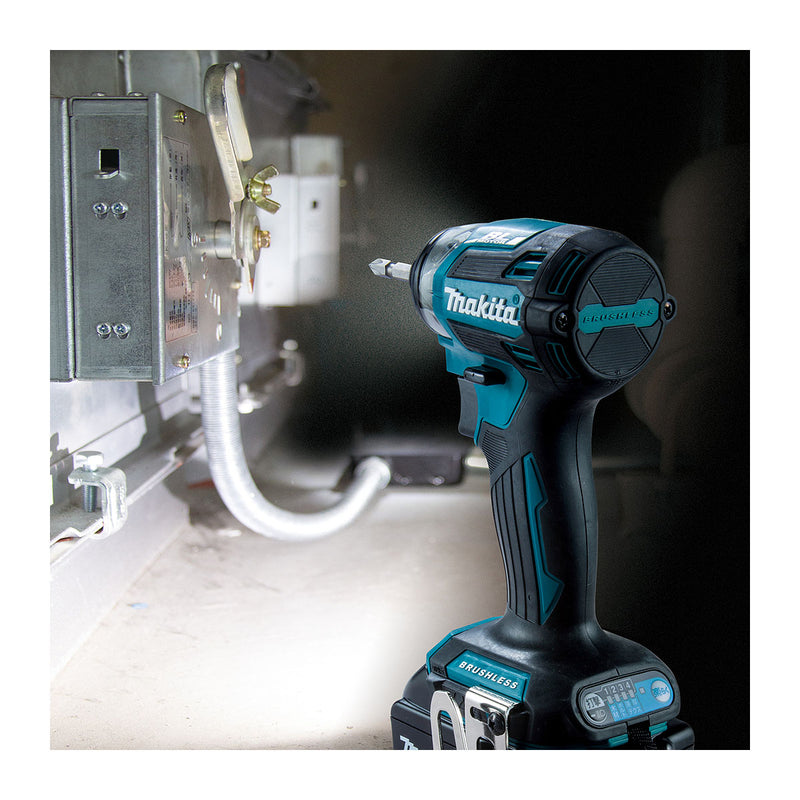

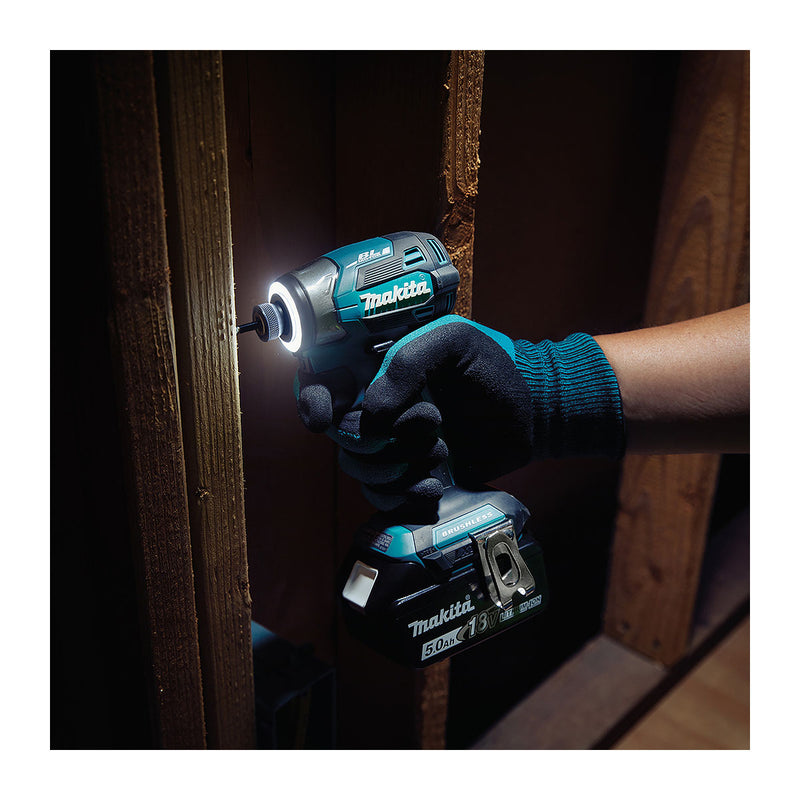

The operator’s burden has been reduced and the operability has been improved by revising the layout of the battery and the switch panel from DTD172 and slimming down the entire circumference of the head.Illumination shadows have been significantly reduced by adopting a ring illumination LED
___________________________
Product Specifications:
DTD173RTJ

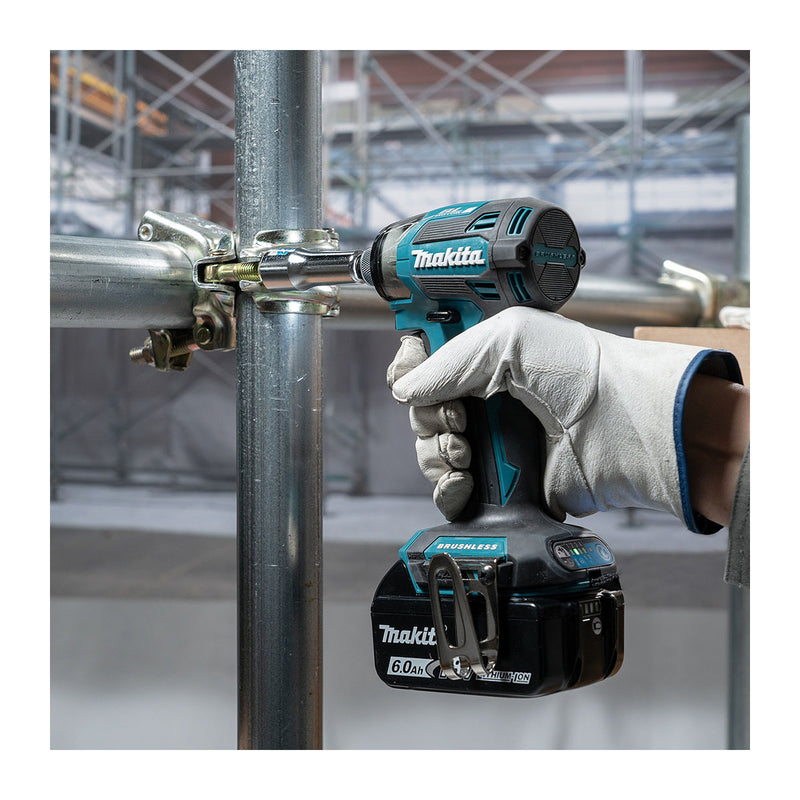

Capacity : Machine screw: M4 - M8 (5/32 - 5/16") Standard bolt: M5 - M16 (3/16 - 5/8") Wood (Auger bit): 24 mm (15/16")
Dimensions (L X W X H) : 111 x 81 x 234 mm (4-3/8 x 3-3/16 x 9-1/4") with BL1860B
Driving Shank (Hex) 6.35 mm (1/4")
Fastening Torque : Hard / Med. / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.)
Net Weight 1.5 kg (3.3 lbs.) with BL1860B
No Load Speed (Rpm) : Max / Hard / Med. / Soft: 0 - 3,600 / 0 - 3,200 / 0 - 2,100 / 0 - 1,100 minˉ¹
( Fast Charger DC18RC, 2 Batteries 5.0Ah BL1850B )
Standard Accessories: Makpac type 2 (821550-0)
DTD173Z
Capacity : Machine screw: M4 - M8 (5/32 - 5/16") Standard bolt: M5 - M16 (3/16 - 5/8") Wood (Auger bit): 24 mm (15/16")
Dimensions (L X W X H) ; 111 x 81 x 234 mm (4-3/8 x 3-3/16 x 9-1/4") with BL1860B
Driving Shank (Hex) 6.35 mm (1/4")
Fastening Torque ; Hard / Med. / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.)
Impacts Per Minute (Ipm) : Max / Hard / Med. / Soft: 0 - 3,800 / 0 - 3,600 / 0 - 2,600 / 0 - 1,100 minˉ¹
Max Fastening Torque 180 N·m (1,590 in.lbs.)
Net Weight 1.5 kg (3.3 lbs.) with BL1860B
No Load Speed (Rpm) ; Max / Hard / Med. / Soft: 0 - 3,600 / 0 - 3,200 / 0 - 2,100 / 0 - 1,100 minˉ¹
( No battery, charger )
