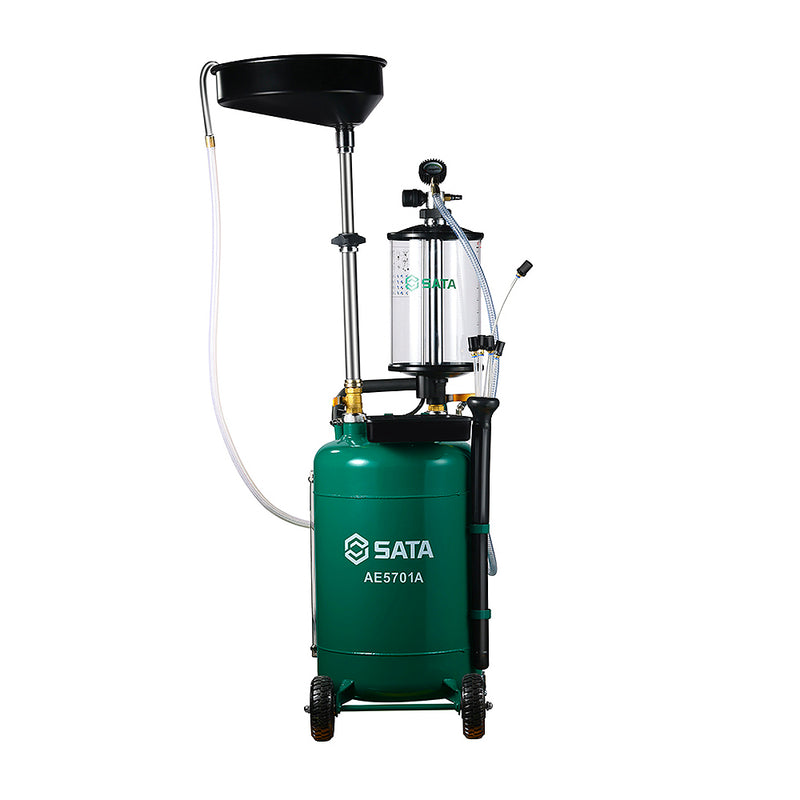

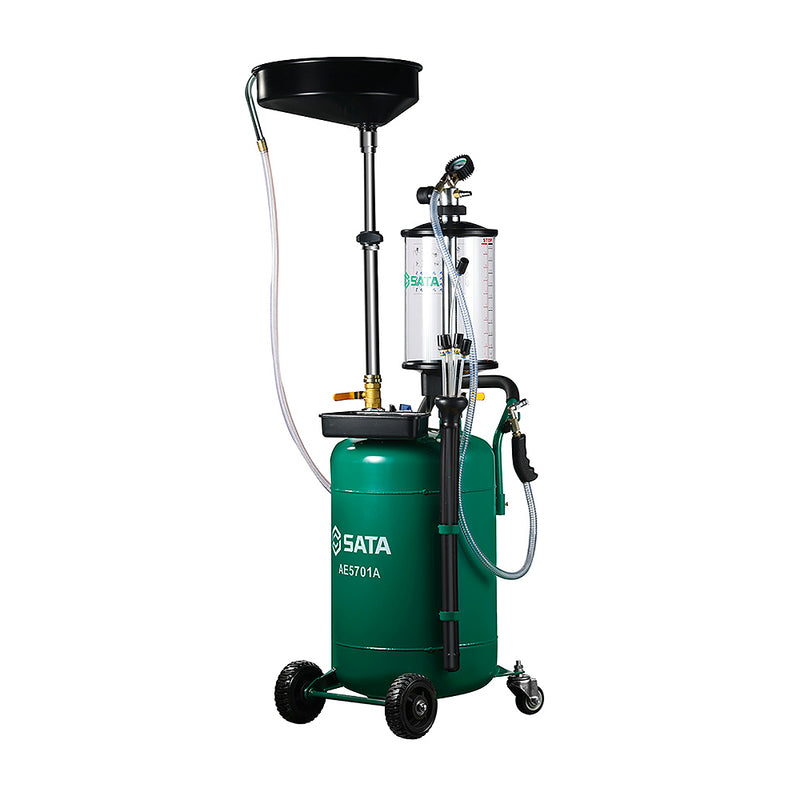

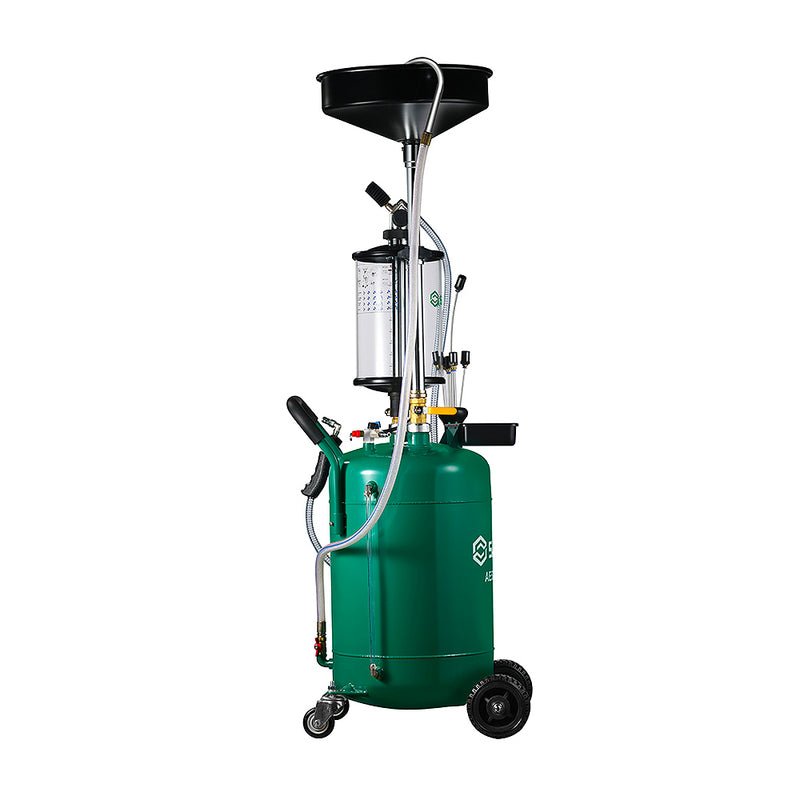

Thiết bị thu dầu thừa của động cơ kèm cốc đo, hoạt động theo cơ chế bơm chân không, dùng trong garage sửa xe ô tô, SATA - AE5701A
Oil Collecting Machine With Measuring Cup
Introduction
● High corrosion resistance measuring cup, anti cracking anti oil leakage, acid and alkali resistance
● Cover sealing design, leakage prevention, strong pressure resistance
● Manual balance pressure, can be a separate measuring cup vacuum
● High smoothness of measuring cup, waste oil is not easy to hang on the wall
Product No AE5701A
Bearing roller, durable Yes
Two-section extension rod, providing better sealing Yes
SATA designed tool tray, easy for tool collection Yes
Automatic welding, with stable and reliable quality Yes
Ergonomic handle, comfortable to use Yes
Eccentric oil tray, increasing collecting range Yes
Armrest protector, comfortable operation Yes
High corrosion resistance measuring glass, anti-cracking, anti-leakage oil and acid and alkali resistance Yes
Equipped with a safety valve, if misoperation occurs, the safety valve will discharge immediately, protecting the measuring glass from being damaged by high pressure Yes
Manually equalize the air pressure and can be vacuumed by a separate measuring glass Yes
Measuring glass 10L
Drainage radius 294mm
Air source 8-10bar
Overall Height 1390mm
Extraction speed 3L/min
Packaging Cardboard box
Warranty 1 year for the machine
3 years for the measuring cup
Vacuum of 0.85bar for fast pumping speed Yes
Oil tank 70L
Ultimate vacuum Over -0.8bar
Net Weight (kg) 29
