Thiết bị đo kiểm tra pin, ắc quy Hioki BT3564, dùng để đo pin EV - PHEV

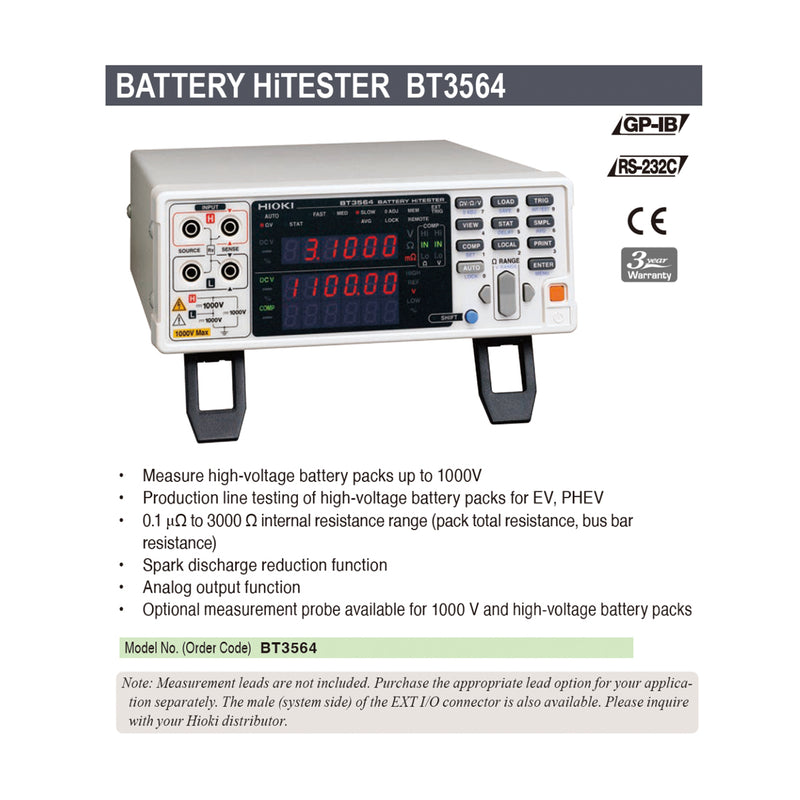

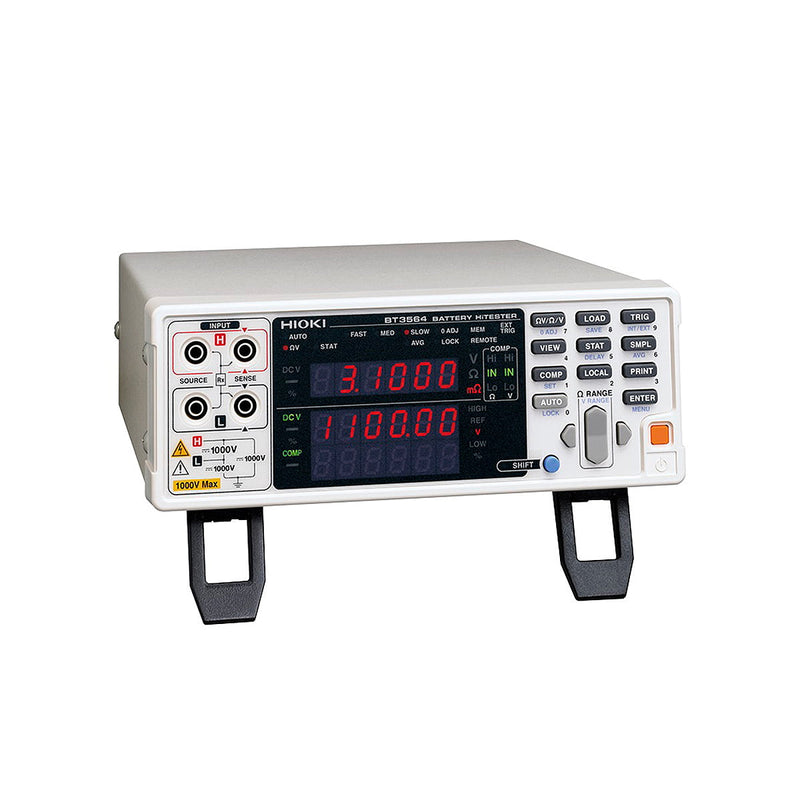

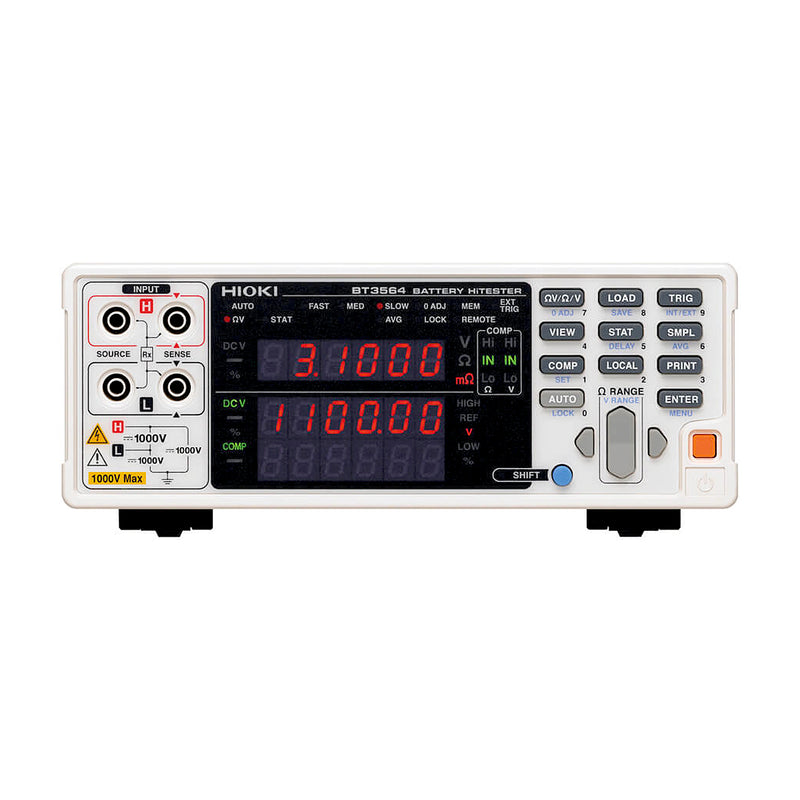

Battery HiTESTER Hioki BT3564
___________________
Thông tin sản phẩm
★ Đo điện áp dàn ắc quy lên tới 1000V
★ Kiểm tra dây chuyền sản xuất dàn ắc quy điện áp cao cho EV, PHEV
★ Dải đo nội trở (tổng trở cả dàn, điện trở thanh cái): 1mΩ – 3kΩ
★ Chức năng giảm xả tia lửa điện
★ Chức năng đầu ra Analog

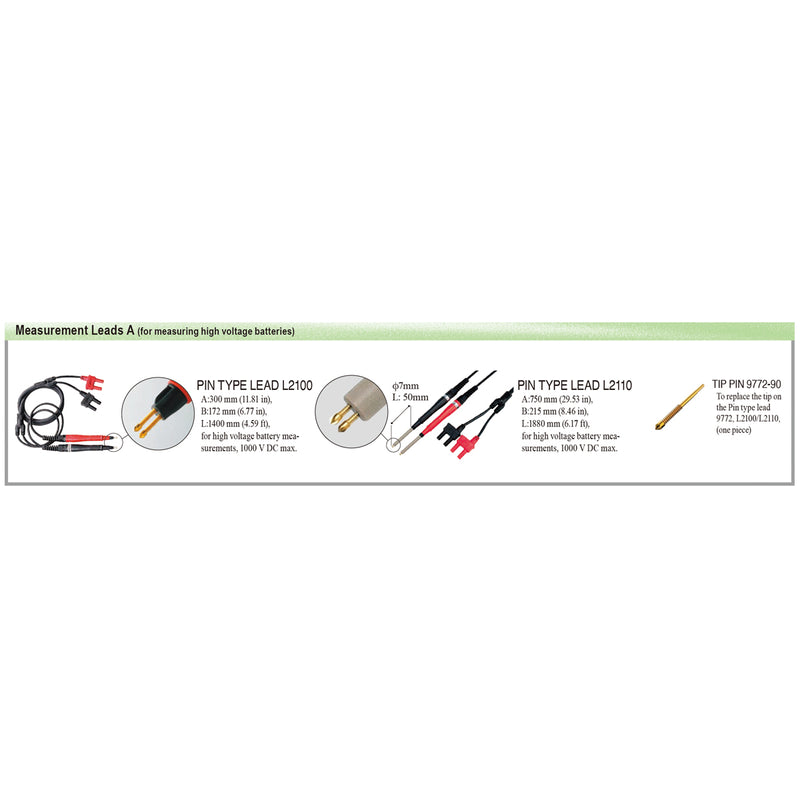

★ Tùy chọn đầu đo cho 1000V và dàn ắc quy điện áp cao.
___________________

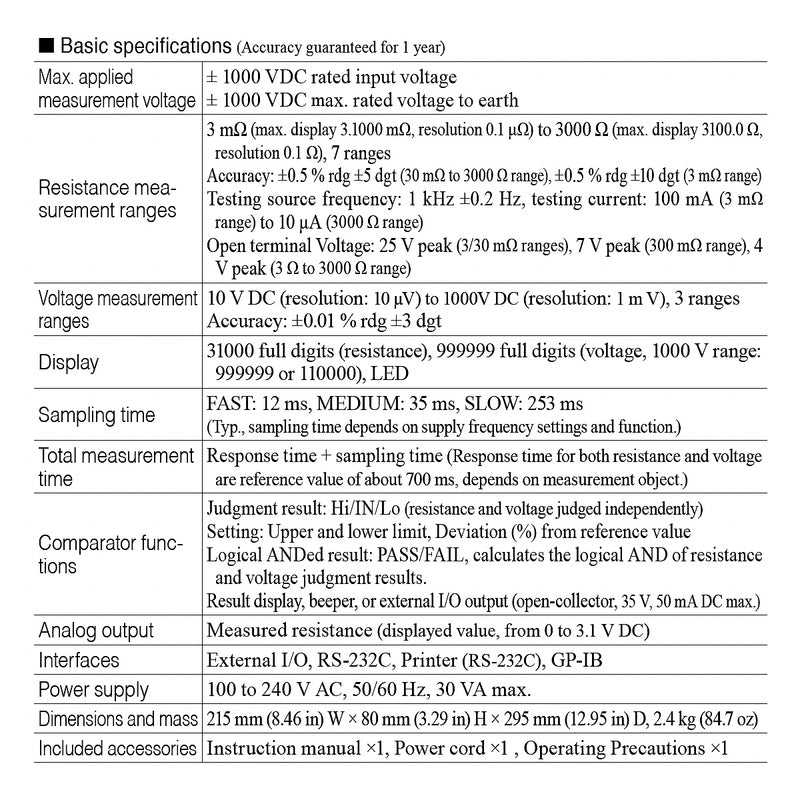

Basic specifications
‣ Max. applied measurement voltage
‣ ± 1000 VDC rated input voltage
‣ ± 1000 VDC max. rated voltage to earth
‣ Resistance measurement ranges
‣ 3 mΩ (max. display 3.1000 mΩ, resolution 0.1 μΩ) to 3000 Ω (max. display 3100.0 Ω, resolution 0.1 Ω), 7 ranges
‣ Accuracy: ±0.5 % rdg ±5 dgt (30 mΩ to 3000 Ω range), ±0.5 % rdg ±10 dgt (3 mΩ range)
‣ Testing source frequency: 1 kHz ±0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 μA (3000 Ω range)
‣ Open terminal Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3000 Ω range)
‣ Voltage measurement ranges: 10 V DC (resolution: 10 μV) to 1000V DC (resolution: 1 m V), 3 ranges, Accuracy: ±0.01 % rdg ±3 dgt
‣ Display 31000 full digits (resistance), 999999 full digits (voltage, 1000 V range: 999999 or 110000), LED
‣ Sampling time FAST: 12 ms, MEDIUM: 35 ms, SLOW: 253 ms (Typ., sampling time depends on supply frequency settings and function.)
‣ Total measurement time: Response time + sampling time (Response time for both resistance and voltage are reference value of about 700 ms, depends on measurement object.)
‣ Comparator functions: Judgment result: Hi/IN/Lo (resistance and voltage judged independently)
‣ Setting: Upper and lower limit, Deviation (%) from reference value
‣ Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results.
‣ Result display, beeper, or external I/O output (open-collector, 35 V, 50 mA DC max.)
‣ Analog output: Measured resistance (displayed value, from 0 to 3.1 V DC)
‣ Interfaces External I/O, RS-232C, Printer (RS-232C), GP-IB
‣ Power supply 100 to 240 V AC, 50/60 Hz, 30 VA max.
‣ Dimensions and mass 215 mm (8.46 in) W × 80 mm (3.29 in) H × 295 mm (12.95 in) D, 2.4 kg (84.7 oz)
‣ Included accessories Instruction manual ×1, Power cord ×1 , Operating Precautions ×1
